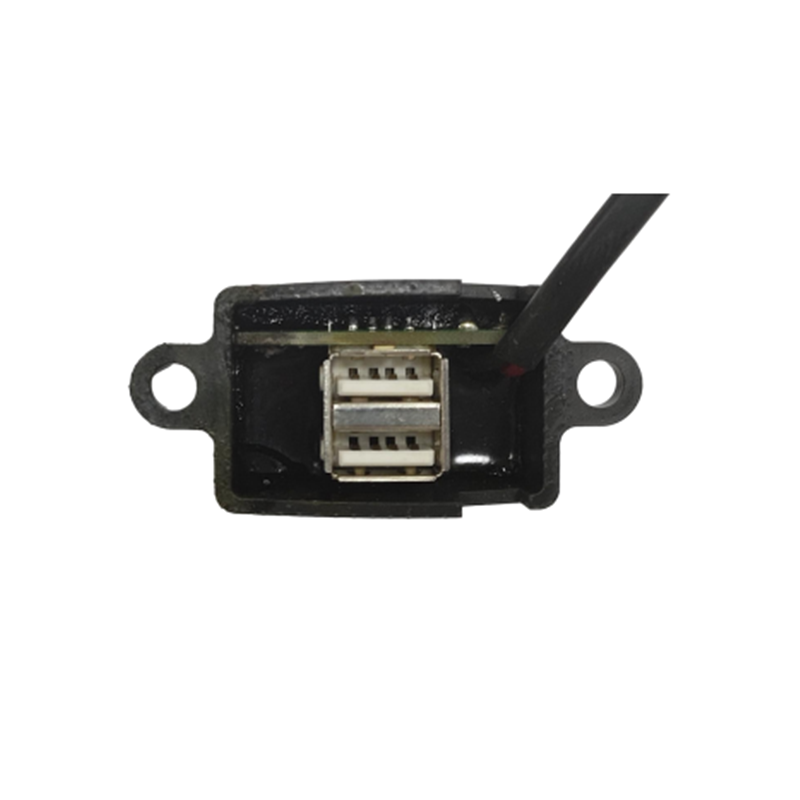

In Vehicle Usb Module

This in vehicle usb module features two output ports. The input voltage is flexible: for DC, it accepts 8V to 36V (withstanding up to 36V), and for AC, it accepts 8V to 26V. This makes it compatible with both 12V and 24V vehicles. The maximum output is DC 5.0V to 5.2V.

●OUT1 provides 1400mA to 1600mA.

●OUT2 provides 2000mA to 2100mA.

●The total current from both ports is less than 3A, meaning you can charge a phone and a tablet simultaneously, both at full speed.

We installed this in vehicle usb module for a school bus customer. The bus, with 20 seats, had one module per seat. Students used the modules to charge their phones and tablets. After six months of use, none of the modules failed.

This module includes short circuit protection, overheat protection, and overvoltage protection. In our testing, we shorted the output for half an hour, and the module automatically shut itself off. After removing the short, it restarted without issue. If the module overheats, it reduces power to 80%, preventing damage. A continuous running test lasted over 500 hours with no failures.

This in vehicle usb module operates in temperatures ranging from -30°C to 70°C. The storage temperature range is -40°C to 85°C, meaning it can withstand even the coldest northern winters. The humidity range is 30% to 85% RH.

Although the shell material isn't separately specified, the entire module is compact and can be embedded into a panel. With 34 years of molding experience, we manufactured the shell ourselves. We also tested the USB port for 10,000 plug cycles, and it remained secure without loosening.

We offer a 2-year warranty for this product.
