Product Overview



Custom injection molded plastic components—including multi-cavity control knobs, ergonomic remote control housings, and tight-tolerance hard plastic caps—engineered for industrial equipment, consumer electronics, and appliance assemblies. Built directly from customer CAD data using high-precision steel molds.


Core Function: Mechanical interface, structural housing, and protective sealing for electronic and mechanical assemblies.
Target Buyers: OEM Product Engineers, Hardware Sourcing Managers, and Contract Manufacturers requiring custom thermoplastic parts.


  • Plastic Remote Control Housing
    Plastic remote control housings consist of matched top covers, bottom covers, and battery doors for television, air-conditioner, vehicle, smart-home, and industrial remote-control assemblies, with...

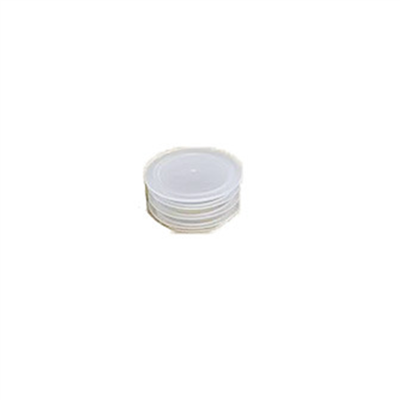

  • Hard Plastic Caps
    Hard plastic caps are injection-molded food-grade PE closures for bottles and jars used with sauces, edible oils, seasonings, powders, and other non-pressurized food products, with the fit matched...
  • Plastic Bottle Closures
    Beyond the automotive sector, we apply our precision injection molding expertise to the high-volume production of Plastic bottle closures for the food and beverage industry. Manufactured from...
  • Molded Plastic Hooks
    Our Molded plastic hooks are a staple in both the retail and automotive sectors, prized for their strength-to-weight ratio and clean finish. We offer these hooks in PP, ABS, or PA6, depending on...
  • Plastic Push Button
    The Plastic push button is a versatile component found in everything from car interiors to industrial control panels. We focus on two engineering pillars for this product: tactile feedback and...
  • Plastic Molded Enclosure
    Our Plastic molded enclosure solutions serve a wide range of industries, notably as high-durability housings for domestic water meters and electronic devices. When transparency and impact...
  • Plastic Grip Handles
    From car interior door handles to industrial storage box grips, our Plastic grip handles are engineered for comfort, strength, and longevity. We utilize high-performance PC/ABS or glass-fiber...

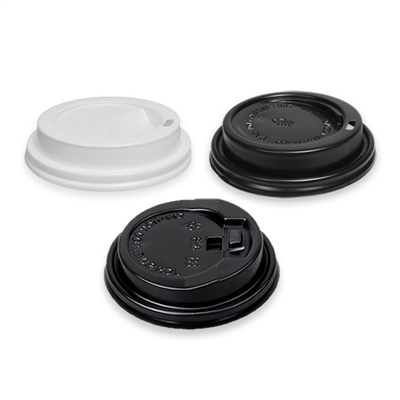

  • Plastic Cup Lids
    Our Plastic cup lids represent the pinnacle of high-volume, food-safe injection molding. Designed for the global coffee and beverage market, these lids are manufactured from food-grade PC...
  • Plastic Mounting Brackets
    Our Plastic mounting brackets are the versatile "workhorses" of the automotive and industrial sectors, designed to provide secure, rattle-free mounting for everything from internal sensors to...
  • Plastic Fastener Clips
    The humble Plastic fastener clips are the essential components that keep a vehicle's interior panels and wiring harnesses securely in place. We specialize in producing these from PA6 and POM...

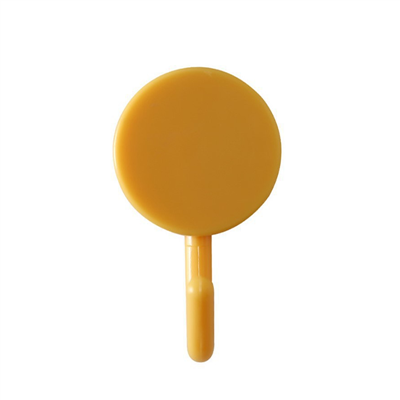

  • Clothes Hanger Hook Plastic
    Clothes hanger hook plastic parts are standalone molded hooks for bathrooms, kitchens, closets, utility rooms, and tool-storage areas, where they hold towels, garments, kitchen tools, and similar...

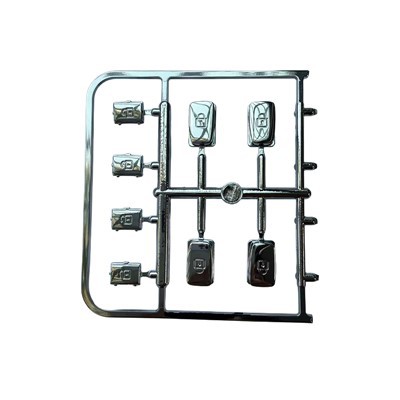

  • PVC Push Button
    The PVC Push Button is an injection-molded button cap that transfers finger force to an underlying switch and provides the visible operating surface of the assembly. It is used in vehicle keys,...
First 123 Last

Car Key Injection Molded Parts



Product Types

Plastic Control Knobs: Single-shot and dual-material (PC/ABS) rotary knobs, indicator caps, and slider knobs. Features include metal insert overmolding (brass inserts, set screws), knurled textures, and precise D-bore or splined shaft interfaces.


Plastic Remote Control Housings: Handheld enclosures, snap-fit top/bottom shells, battery compartment doors, and light-pipe integration windows. Designed for ergonomic wall thickness and secure internal PCB mounting bosses.


Hard Plastic Caps: Protective end caps, threaded plugs, structural covers, and snap-in panel plugs molded in rigid engineering plastics (Nylon, POM, ABS) to withstand mechanical wear and environmental exposure.



Materials & Technical Specifications



Parameter

Specification Details

Standard Resins

ABS, PC, PC/ABS, Nylon (PA6, PA66), POM (Delrin), PP, PE, PMMA (Acrylic)

Dimensional Tolerance

Standard ISO 2045-1 precision / High-precision to ±0.02 mm (feature-dependent)

Nominal Wall Thickness

1.2 mm to 3.5 mm (optimized to prevent sink marks and warpage)

Mold Development

Single and multi-cavity hot/cold runner molds; P20, H13, S7, NAK80 tool steel options

Molding Process

High-pressure thermoplastic injection molding, insert molding, two-shot molding

Shrinkage Control

Material-specific shrinkage compensation factored directly into tool cutting data (0.4% to 2.0%); balanced runner layout for uniform cavity fill

Surface Finishes

SPI/SPE surface grades (SPI A-2 to D-3), VDI texturing, matte, high-gloss, or EDM texture





Applications

Industrial Equipment: Control panel knobs and heavy-duty interface caps for machinery, HVAC controllers, and test instruments.


Consumer & Commercial Electronics: Remote control enclosures for home automation, set-top boxes, and industrial handheld devices.


Assembly Environment: Snap-fit, ultrasonic welding, or screw-fastened integration into metal or plastic sub-assemblies.


Operating Conditions: Temperature ranges from -30°C to +90°C (resin-dependent); resistant to routine chemical cleaning and mechanical impact.

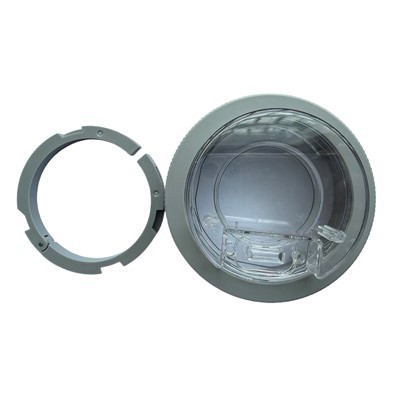

Injection Molded Housing




Customization & OEM/ODM

01/

Drawing Processing: Direct evaluation of STEP, IGES, Parasolid 3D models and 2D engineering drawings with GD&T tolerances.

02/

Material Selection Support: Resin recommendations based on mechanical load, UV exposure, impact resistance, and flame retardancy requirements (UL94 V-0).

03/

Design for Manufacturability (DFM): Comprehensive engineering review covering draft angles (1° to 2° recommended), uniform wall thickness, rib design, and gate location optimization.

04/

Tooling Development: In-house mold flow analysis (CAE) to predict weld lines, air traps, and warpage before steel cutting.



Manufacturing & Quality Control



Production Equipment

Automated injection molding machines ranging from 80T to 500T clamping force equipped with closed-loop process monitoring for injection pressure, holding time, and mold temperature.

01

Dimensional Inspection

CMM (Coordinate Measuring Machine), optical projectors, and digital height gauges for critical dimension verification against 2D drawings.

02

Functional Testing

Insertion force testing for control knobs, drop-test validation for remote housings, snap-fit retention testing, and torque tests for brass inserts.

03

Traceability

Lot control linking raw material batch certificates (COA) to production run timestamps, operator logs, and final inspection records.

04



Ordering Information



1

Minimum Order Quantity (MOQ)

Prototypes: 10–50 pcs (machined or rapid tooling); Production: Typically 1,000 pcs per batch (negotiable based on part size and tooling investment).

2

Prototyping Lead Time

5–10 business days for CNC-machined samples or 3D printed functional prototypes; 15–25 days for initial tooling samples (T1).

3

Production Lead Time

3–4 weeks upon T1 sample approval.

4

Drawing Requirements

3D CAD model (STEP format required) alongside a 2D PDF detailing critical dimensions, material grade, surface finish callout, and color (RAL or Pantone code).



FAQ



Q: What file formats are required to start a quotation?

A: Provide a 3D CAD file in STEP or IGES format, along with a 2D PDF drawing specifying critical tolerances, surface finish (SPI/VDI), material grade, and estimated annual volume.

Q: How do you prevent sink marks on thick sections of control knobs or housings?

A: We optimize part geometry during the DFM phase by coring out thick sections, maintaining uniform wall thickness, and running mold flow analysis to place gates correctly and control packing pressure.

Q: Can you mold metal inserts directly into plastic control knobs?

A: Yes. We routinely perform insert molding to integrate threaded brass inserts, shafts, or steel reinforcement studs securely within the plastic body during injection.

Q: What is the typical lifespan of the injection mold tool?

A: Tool life depends on steel selection and production volume. P20 steel molds generally support up to 300,000 cycles, while hardened H13 or S7 steel tooling supports 1,000,000+ production cycles with routine maintenance.

Q: How do you handle color matching for remote housings and caps?

A: We match colors using standard RAL or Pantone color codes, or match physical color plaques provided by the client, utilizing masterbatch or pre-colored virgin resin.

Q: What quality documentation is provided with shipments?

A: Standard shipments include an inspection report verifying critical dimensions. Full Material Certificates of Analysis (COA) and RoHS/REACH compliance documentation are available upon request.



modular-1
Request a Quote

To receive a technical and commercial proposal within 24 hours, please submit your project requirements:
3D CAD Files & 2D Drawings (STEP / PDF with tolerances)
Material Specification (or application operating requirements)
Estimated Annual Volume & Batch Quantities
Surface Finish & Color Requirements

With abundant experience, we are one of the most professional injection molded parts manufacturers and suppliers in China. We warmly welcome you to wholesale customized injection molded parts from our factory. If you have any enquiry about quotation, please feel free to email us.
