Product Overview

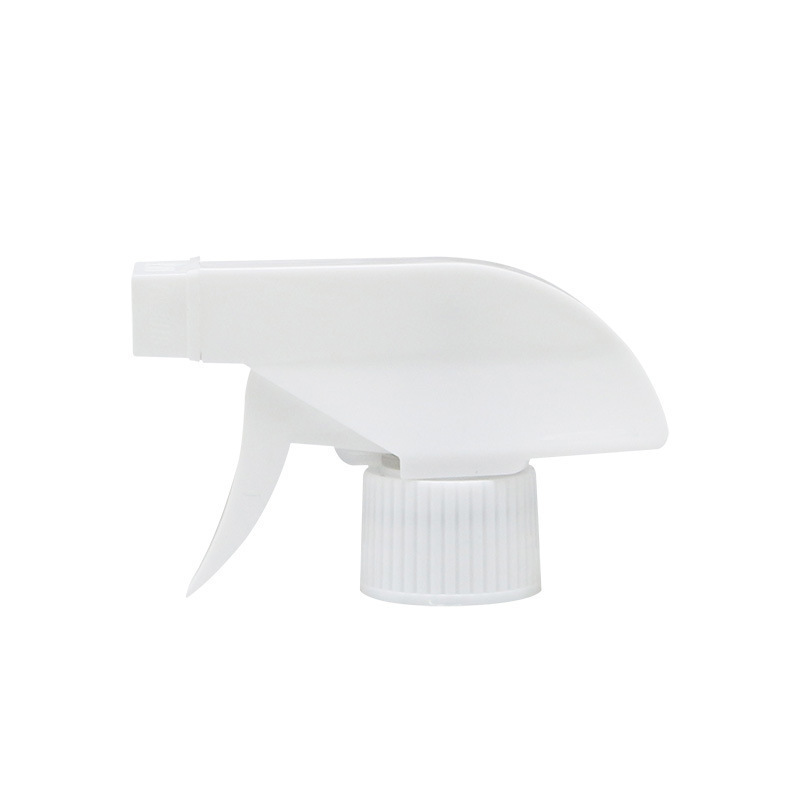

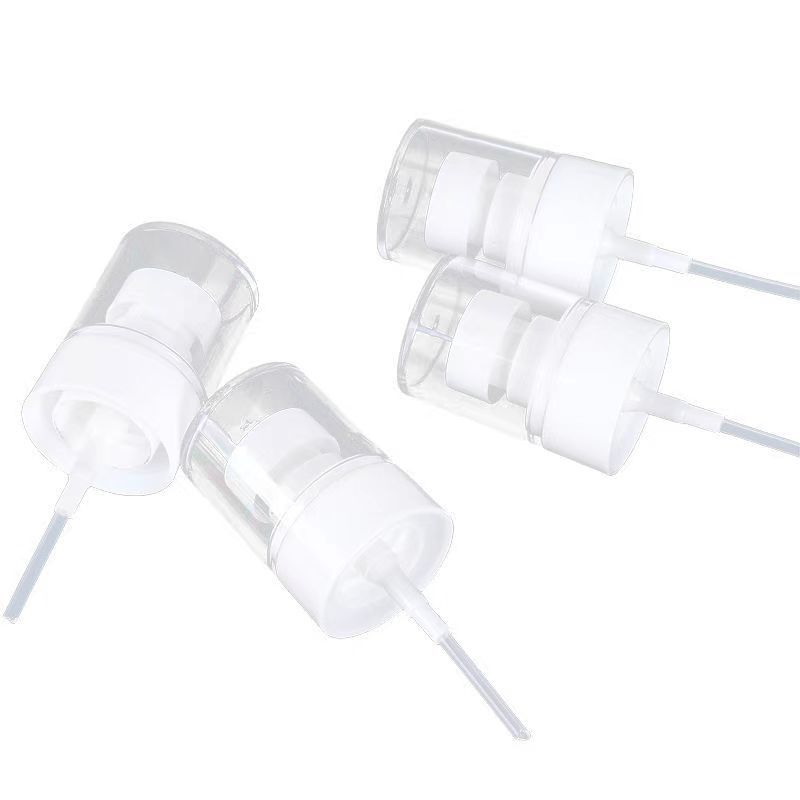

Plastic spray nozzle tips are molded FRPP outlet and swirl components for fine-mist sprayers used with toner, sanitizer, fragrance, cleaners, and other low-viscosity liquids, fitting inside the sprayer head to convert metered liquid flow into a controlled spray cone.
Core Advantages
0.3 mm Orifice with Molded Swirl Path
A molded swirl chamber feeds a 0.3 mm outlet and rotates the liquid before discharge. When the vane and orifice are aligned correctly, the nozzle produces a fine mist rather than the concentrated stream caused by an off-center flow path.
30-60° Spray Angle and 50-100 Micron Median Droplets
Internal geometry can be adjusted for a 30-60° spray angle and a median droplet size of approximately 50-100 microns. The resulting mist covers a controlled area without large drops forming at the center of the spray cone.
Output of 0.05-0.30 ml per Actuation
The nozzle and mating pump are matched for 0.05-0.30 ml per actuation. Each stroke delivers a repeatable amount while limiting overspray and unnecessary liquid use.
Product Parameters
|
Parameter |
Value |
|
Material |
FRPP |
|
Mist particle size |
50-100 microns (median) |
|
Spray angle |
30° to 60° (custom) |
|
Output per spray |
0.05ml to 0.3ml |
|
Nozzle hole size |
0.3mm |
Customization
Customization includes orifice diameter, swirl-vane geometry, spray angle, output per actuation, actuator interface, spring-chamber fit, FRPP specification, color, texture, and molded identification to suit the sprayer assembly.
Quality Control
Optical inspection checks orifice position, swirl-vane fill, and nozzle alignment in the actuator. Spray angle and pattern are tested on the approved pump, and output is measured through repeated actuation. When required, median droplet size is compared with a laser particle-sizing result. Leakage and malformed spray are screened before packing.
FAQ
Q1: Which shipping terms are available?
A1: Orders are supplied under EXW or FOB terms.
Q2: How long does custom sample development take?
A2: A new nozzle and matching tool normally require about 50 days after the spray target and mating-pump dimensions are confirmed.
Q3: Can the fine-mist nozzle spray oil or a viscous liquid?
A3: The standard fine-mist structure is intended for low-viscosity liquids. Oils and thicker formulas need a larger flow path, a different valve condition, or a dedicated trigger-sprayer design.
Q4: Are the spring and complete pump body included?
A4: The standard scope covers the molded nozzle components. Springs, pump bodies, and complete sprayer assemblies are supplied only when included in the confirmed bill of materials.
